Adapter SMA
Is-Serje SMA Adapters RF Coaxial huma l-akbar firxa ta 'applikazzjoni u l-akbar varjetà fost is-serje kollha tal-adapter . hemm madwar mijiet ta' tipi fakultattivi . il-frekwenza operattiva massima tagħha tista 'tilħaq sa 26 {. 5 GHz {. fosthom, huma ddisinjati u żviluppati skond it-tliet band ta' frekwenza differenti ta '6G, 18G u 26.5G prodotti.
Deskrizzjoni
Introduzzjoni tal-Prodott
Is-Serje SMA Adapters RF Coaxial huma l-akbar firxa ta 'applikazzjoni u l-akbar varjetà fost is-serje kollha tal-adapter . hemm madwar mijiet ta' tipi fakultattivi . il-frekwenza operattiva massima tagħha tista 'tilħaq sa 26 {. 5 GHz {. fosthom, huma ddisinjati u żviluppati skond it-tliet band ta' frekwenza differenti ta '6G, 18G u 26.5G prodotti.
Materjal tal-prodott
Il-konduttur ta 'barra tal-korp tal-konnettur SMA huwa ġeneralment magħmul minn materjali tal-metall bħal ram jew azzar li ma jissaddad Trasmissjoni .
Stil tal-Korp tal-Prodott
Konnetturi SMA huma disponibbli f'diversi forom tal-ġisem, inkluż tip dritta, tip ta 'angolu rett, 4- Mount tal-flanġ tat-toqba, tip ta' muntatura tal-paratija, u tip ta 'paragun tal-vakwu mmuntat tat-tip .
FAQ tal-Akkwist
Dejta dwar l-ispeċifikazzjoni tal-prodott
|
Konfigurazzjoni |
|
|
Konnettur 1 Tip |
SMA |
|
Konnettur 1 Impedenza |
50 ohm |
|
Konnettur 1 Polarità |
Standard |
|
Konnettur 2 Tip |
SMA / GPPO / GPO / 2.4mm / 2.92mm / 3.5mm / N / TNC / BNC / SSMC / MMCX / IPEX / SSMA |
|
Konnettur 2 Impedenza |
50 ohm |
|
Konnettur 2 Polarità |
Standard |
|
Metodu tal-impunjazzjoni tal-konnettur |
Xejn |
|
Stil tal-ġisem tal-adapter |
Flanġ dritta / 4 toqob / mount tal-paratija / angolu tal-lemin / |
|
Informazzjoni dwar il-Materjali |
|
|
Kuntatt taċ-ċentru |
Kubu tad-deheb indurat |
|
Kuntatt ta 'barra |
Deheb tar-ram isfar / azzar li ma jissaddadx |
|
Korp |
Deheb tar-ram isfar / azzar li ma jissaddadx |
|
Dielettriku |
PEI / PTFE / Ħġieġ |
|
Dejta ambjentali |
|
|
Firxa tat-temperatura |
-55 grad sa +165 grad |
|
2011/65 / UE (ROHS) |
Konformi |
Tipi ta 'adapter SMA
|
Adapter SMA RF |
|||||
|
SKU |
Tpinġija |
Frekwenza |
VSWR |
Tip ta 'Deskrizzjoni |
|
|
Fr 1- sma-jjs |
|
|
DC -18 GHz |
1.15 |

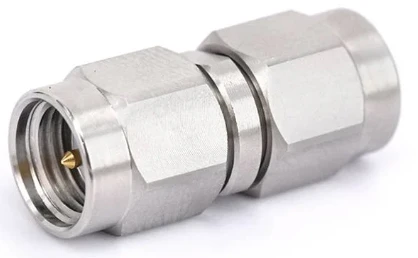

SMA Male to SMA Male |
|

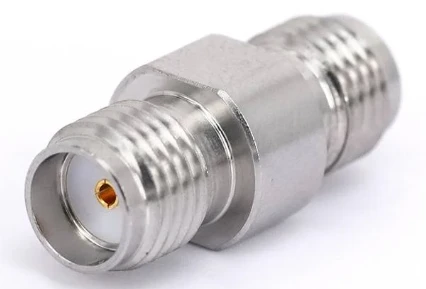

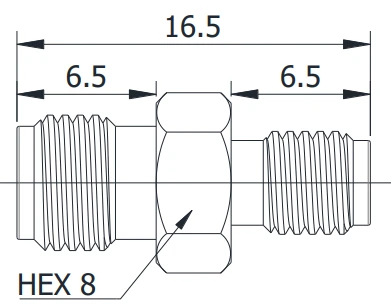

Fr 1- sma-kks |
|
|
DC -18 GHz |
1.15 |
SMA Femminili lil SMA Mara |
|
Fr 1- sma-jks |
|
|
DC -18 GHz |
1.15 |

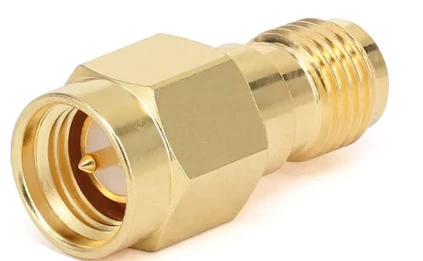

SMA Male to SMA Mara |
|

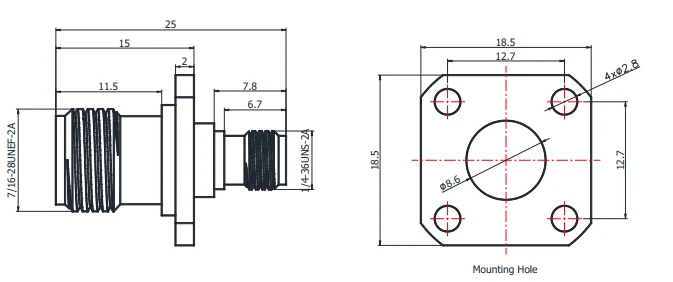

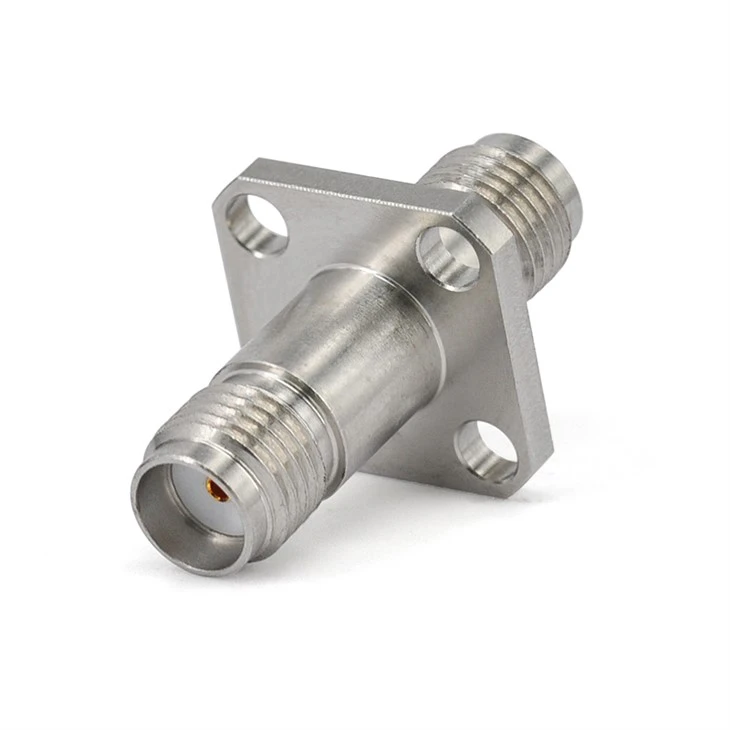

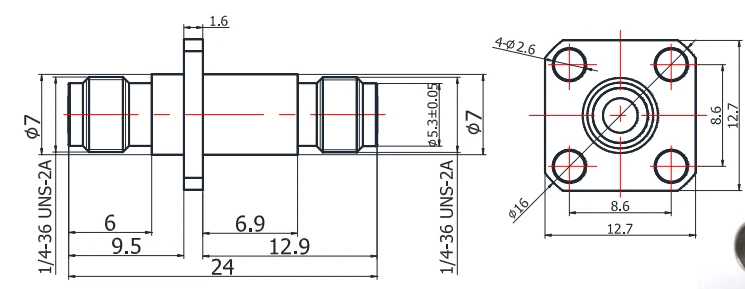

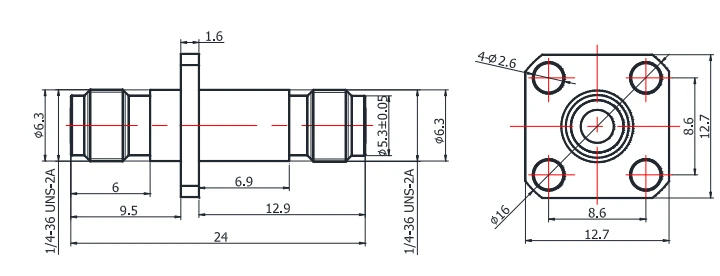

Fr 1- sma-kfkg -1 |
|
|
DC -18 GHz |
1.15 |

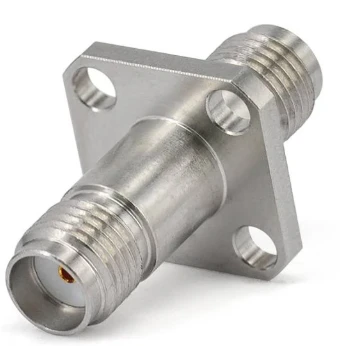

Mara SMA lil mara SMA b'4 toqob tal-flanġ |
|
Fr 1- sma-kfkg |
|
|
DC -26.5 GHz |
1.15 |
Mara SMA lil mara SMA b'4 toqob tal-flanġ |
|

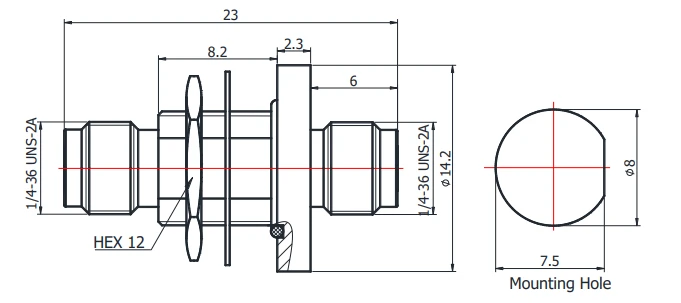

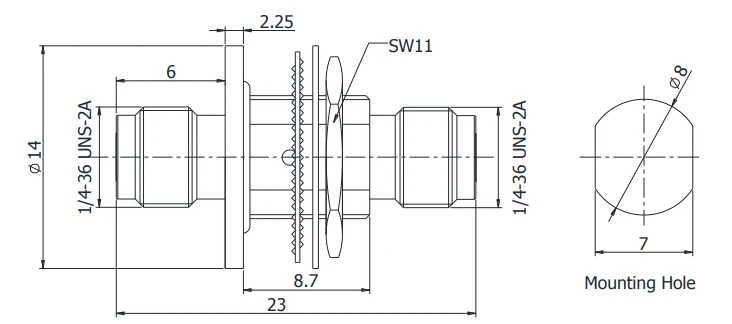

Fr 1- sma-kykg -1 |
|
|
DC -26.5 GHz |
1.25 |
Mara SMA lil mara SMA b'muntar tal-paratija |
|
Fr 1- sma-jfkg |
|
|
DC -18 GHz |
1.20 |

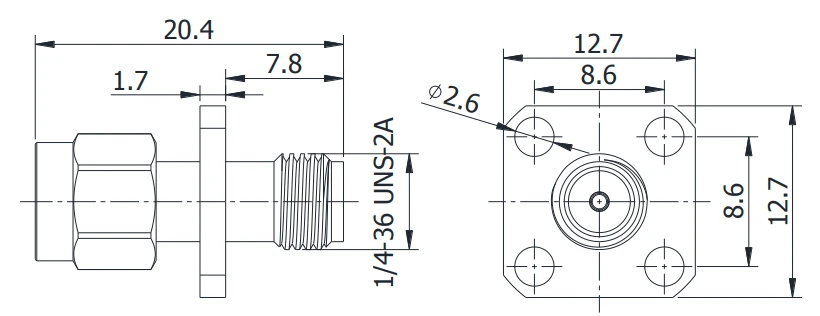

SMA Male to SMA Female b'4 toqob tal-flanġ |
|
Fr 1- sma-jwjs -18 g |
|
|
DC -18 GHz |
1.25 |
SMA Male to SMA Male b'angolu rett |
|
Fr 1- sma-kwks -18 g |
|
|
DC -18 GHz |
1.25 |
SMA mara lil mara SMA b'angolu rett |
|
Fr 1- sma-jwks -18 g |
|
|
DC -18 GHz |
1.25 |
SMA Male to SMA Female b'angolu rett |
|

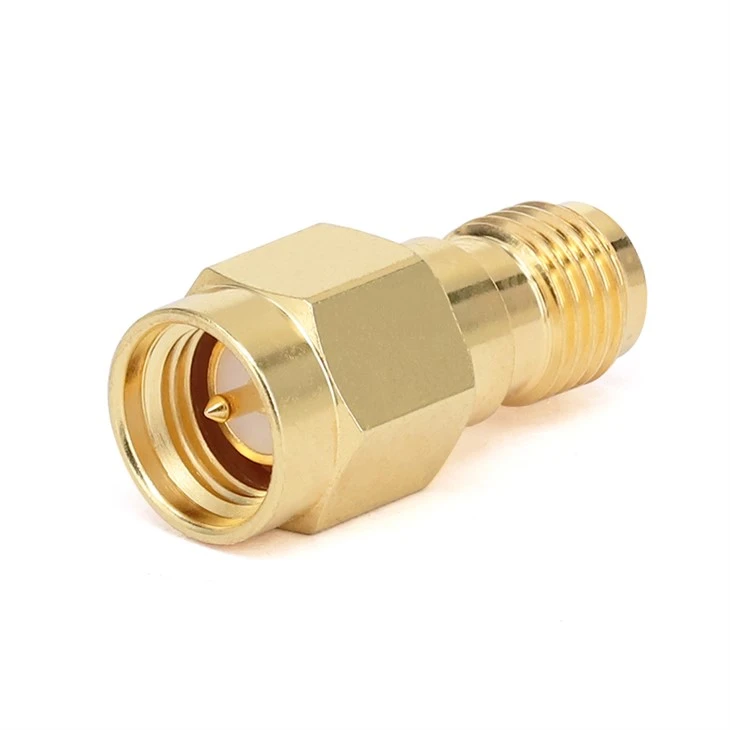

Fr 1- sma-jk |
|
|
DC -18 GHz |
1.25 |
SMA Male to SMA Mara |
|
Fr 1- Sma-KK-e |
|
|
DC -18 GHz |
1.25 |
SMA Femminili lil SMA Mara |
|
Fr 1- Sma-KK1 |
|
|
DC -18 GHz |
1.25 |
SMA Femminili lil SMA Mara |
|
Fr 1- sma-kyk1 |
|
|
DC -18 GHz |
1.25 |

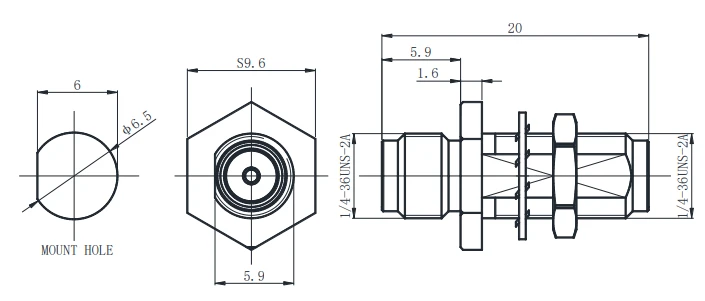

Mara SMA lil mara SMA b'muntar tal-paratija |
|
Fr 1- smam-kyk |
|
|
DC -18 GHz |
1.35 |
Mara SMA lil mara SMA b'muntar tal-paratija u issikkar tal-vakwu |
|
Fr 1- qsma / sma-jks |
|
|
DC -18 GHz |
1.25 |
Raġel SMA malajr lil SMA Femminijiet |
|
Adapter RF SMA sa 2.4mm |
|||||
|
SKU |
Tpinġija |
Feequency |
VSWR |
Tip ta 'Deskrizzjoni |
|
|

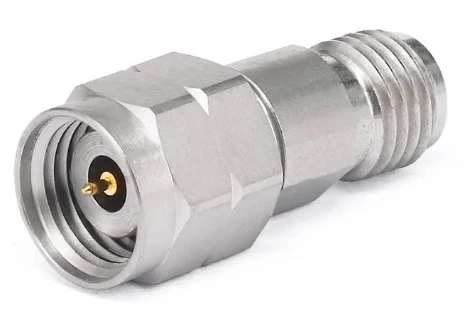

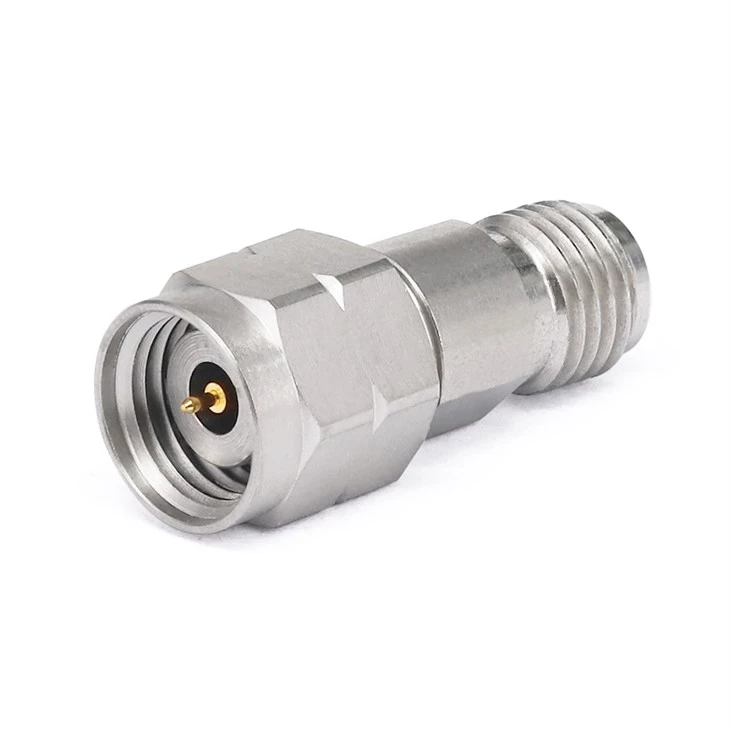

Fr 1- sma / 2.4- kjs |
|
|
DC -26.5 GHz |
1.15 |
Mara SMA għal 2.4mm raġel |
|
SMA sa 2.92mmAdapter RF |
|||||
|
SKU |
Tpinġija |
Frekwenza |
VSWR |
Tip ta 'Deskrizzjoni |
|
|

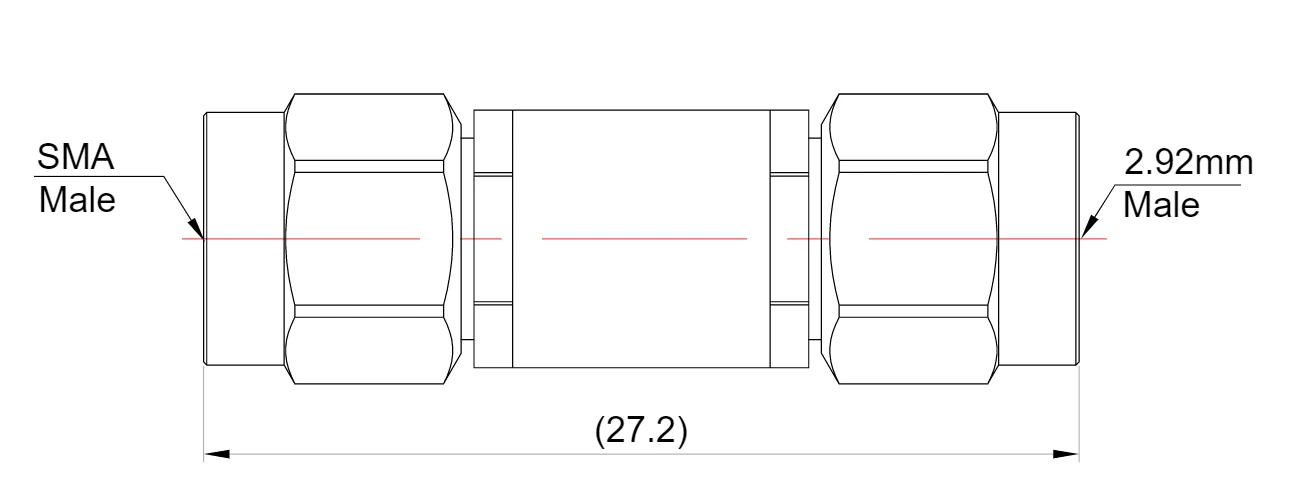

Fr 1- sma / 2.92- jjs |
|
|
DC -18 GHz |
1.15 |
Raġel SMA għal 2.92mm raġel |
|
Fr 1- sma / 2.92- kks |
|
|
DC -18 GHz |
1.15 |

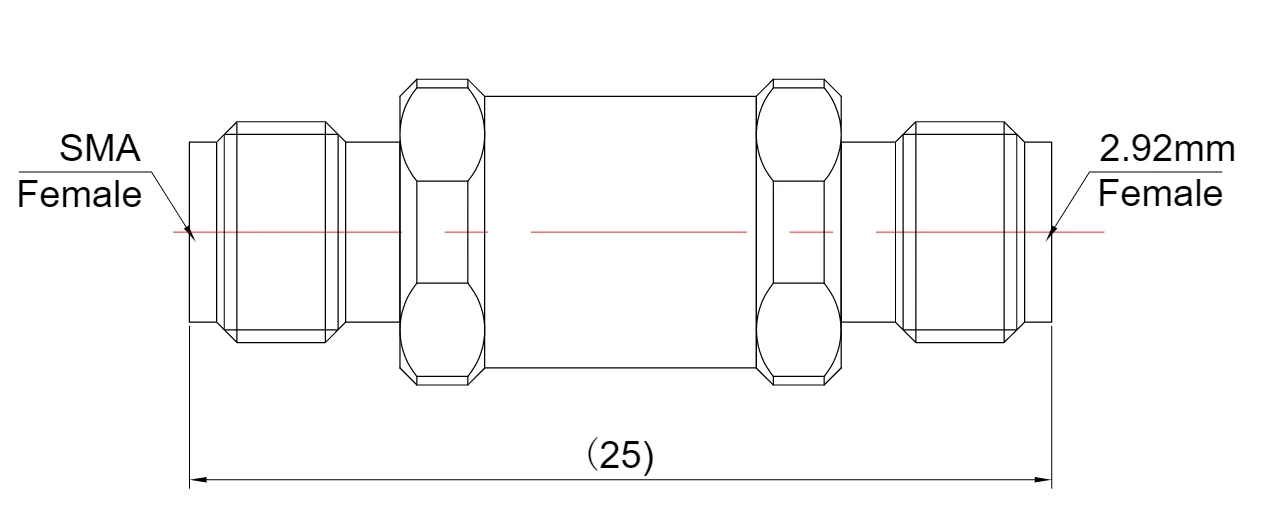

Mara SMA sa 2.92mm mara |
|
Fr 1- sma / 2.92- Jks |
|
|
DC -18 GHz |
1.15 |

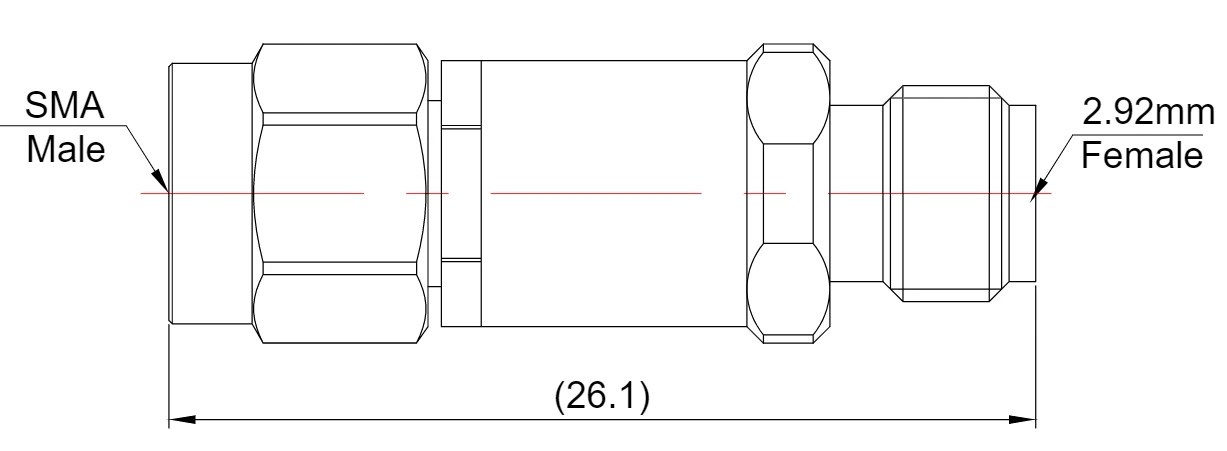

Raġel SMA għal 2,92mm mara |
|

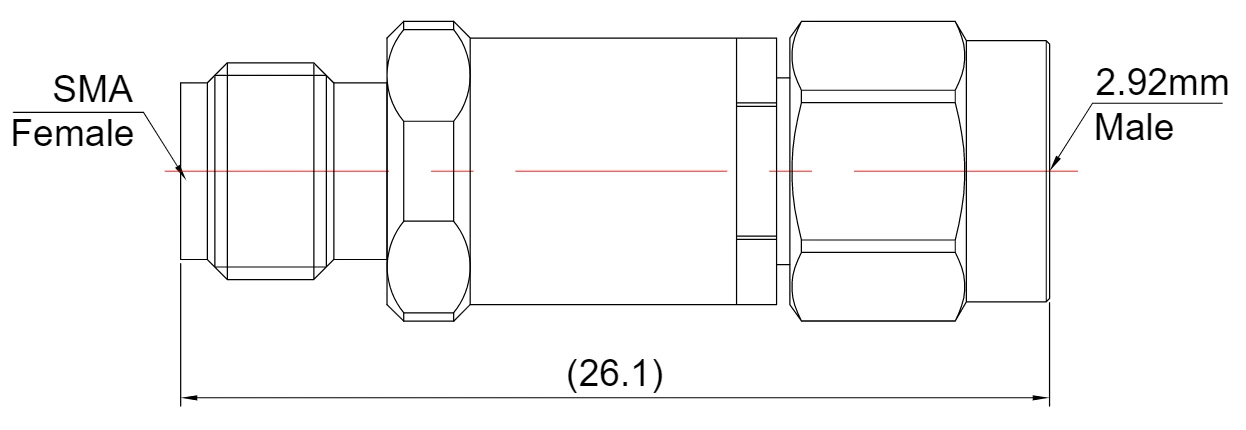

Fr 1- sma / 2.92- kjs |
|
|
DC -18 GHz |
1.15 |
Mara SMA għal 2.92mm raġel |
|

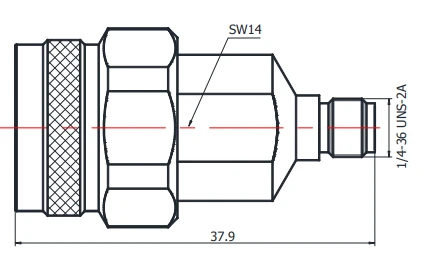

SMA to N RF Adapter |
|||||
|
SKU |
Tpinġija |
Frekwenza |
VSWR |
Tip ta 'Deskrizzjoni |
|
|

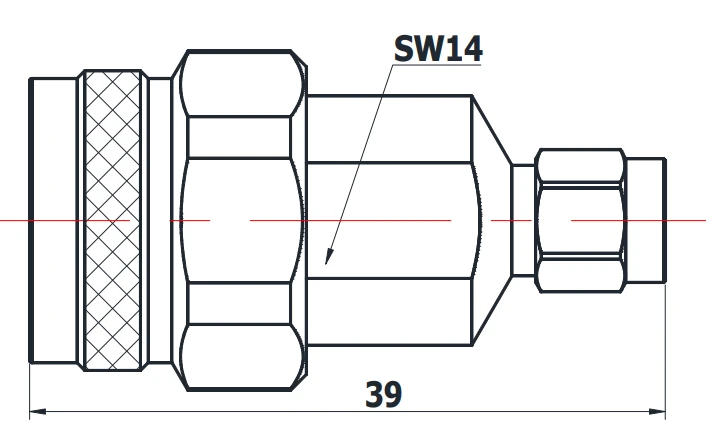

Fr 1- n / sma-jjs |
|
|
DC -18 GHz |
1.15 |
N maskili għal sma raġel |
|
Fr 1- n / sma-kks |
|
|
DC -18 GHz |
1.15 |
N mara lil SMA mara |
|
Fr 1- n / sma-jks |
|
|
DC -18 GHz |
1.15 |
N raġel għal mara Sma |
|
Fr 1- n / sma-kjs |
|
|
DC -18 GHz |
1.15 |
N mara lil Sma Male |
|
Fr 1- n / sma-kykg |
|
|
DC -18 GHz |
1.15 |

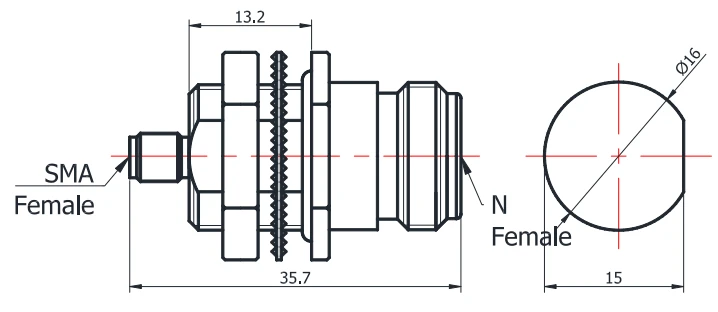

N mara għal SMA mara b'muntatura tal-paratija |
|
Fr 1- n / sma-kfkg |
|
|
DC -18 GHz |
1.15 |

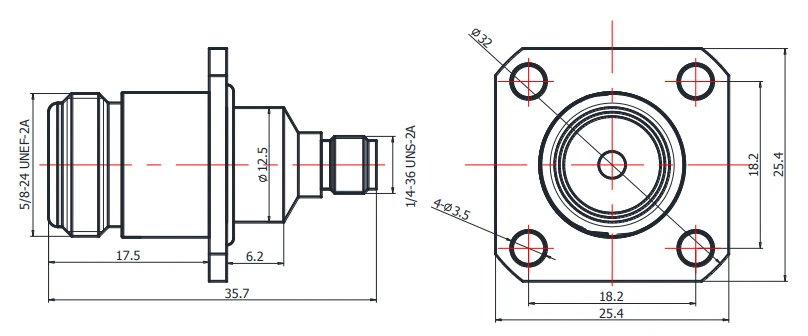

N mara għal mara SMA b'4 toqob tal-flanġ |
|

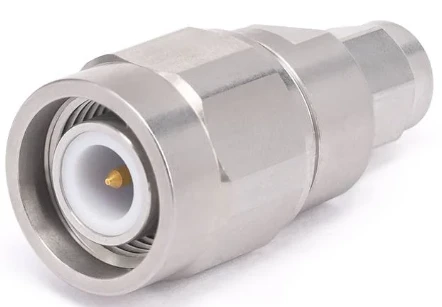

SMA to TNC RF Adapter |
|||||
|
SKU |
Tpinġija |
Frekwenza |
VSWR |
Tip ta 'Deskrizzjoni |
|
|
Fr 1- tnc / sma-jjs |
|
|
DC -18 GHz |
1.25 |
TNC Male to SMA Male |
|
Fr 1- tnc / sma-kks |
|
|
DC -18 GHz |
1.25 |

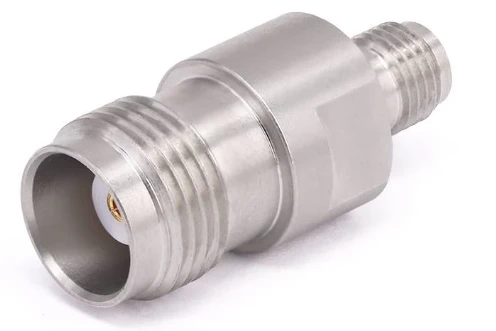

TNC femminili lil SMA mara |
|

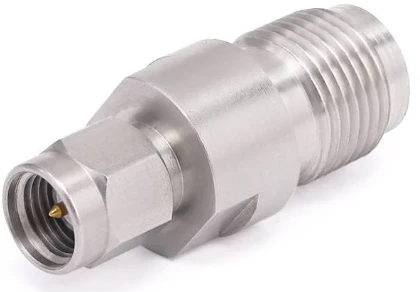

Fr 1- tnc / sma-jks |
|
|
DC -18 GHz |
1.25 |
TNC Male to SMA Femal |
|
Fr 1- tnc / sma-kjs |
|
|
DC -18 GHz |
1.25 |
TNC femminili lil SMA Male |
|
Fr 1- tnc / sma-jj |
|
|
DC -3 GHz |
1.25 |
TNC Male to SMA Male |
|
Fr 1- tnc / sma-kK |
|
|
DC -3 GHz |
1.25 |
TNC femminili lil SMA mara |
|
Fr 1- tnc / sma-jk |
|
|
DC -3 GHz |
1.25 |
TNC Male to SMA Femal |
|
Fr 1- tnc / sma-kj |
|
|
DC -3 GHz |
1.25 |
TNC femminili lil SMA Male |
|

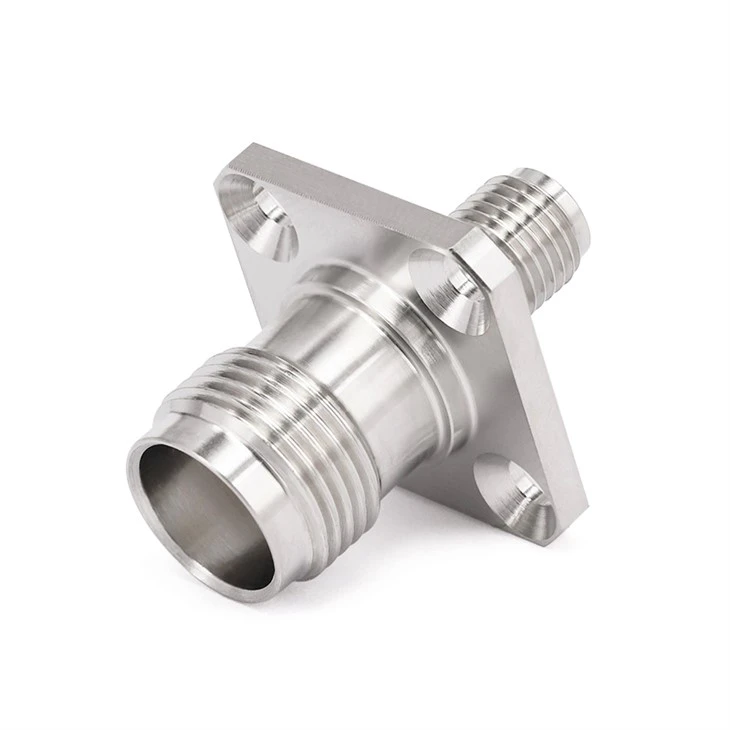

Fr 1- tnc / sma-kfk1 |
|
|
DC -4 GHz |
1.25 |
Mara TNC lil mara SMA b'4 toqob tal-flanġ |
|
SMA to BNC RF Adapter |
|||||
|
SKU |
Tpinġija |
Frekwenza |
VSWR |
Tip ta 'Deskrizzjoni |
|
|
Fr 1- bnc / sma-jjs |
|
|
DC -18 GHz |
1.15 |
Raġel bnc lil sma raġel |
|
Fr 1- bnc / sma-kks |
|
|
DC -18 GHz |
1.15 |
Mara bnc lil mara SMA |
|
Fr 1- bnc / sma-jks |
|
|
DC -18 GHz |
1.15 |
Raġel bnc lil mara SMA |
|
Fr 1- bnc / sma-kjs |
|
|
DC -18 GHz |
1.15 |
Mara bnc lil sma raġel |
|
Adapter RF SMA to GPPO (MINI-SMP) |
|||||
|
SKU |
Tpinġija |
Frekwenza |
VSWR |
Tip ta 'Deskrizzjoni |
|
|
Fr 1- SMA / GPPO-JJ |
|
|
DC -18 GHz |
1.20 |
SMA Male to Gppo Male |
|
Fr 1- SMA / GPPO-KK |
|
|
DC -18 GHz |
1.20 |
Mara SMA għal mara gppo |
|
Fr 1- SMA / GPPO-JK |
|
|
DC -18 GHz |
1.20 |
SMA Male to Gppo Female |
|
Fr 1- SMA / GPPO-KJ |
|
|
DC -18 GHz |
1.20 |
Mara SMA għal raġel gppo |
|

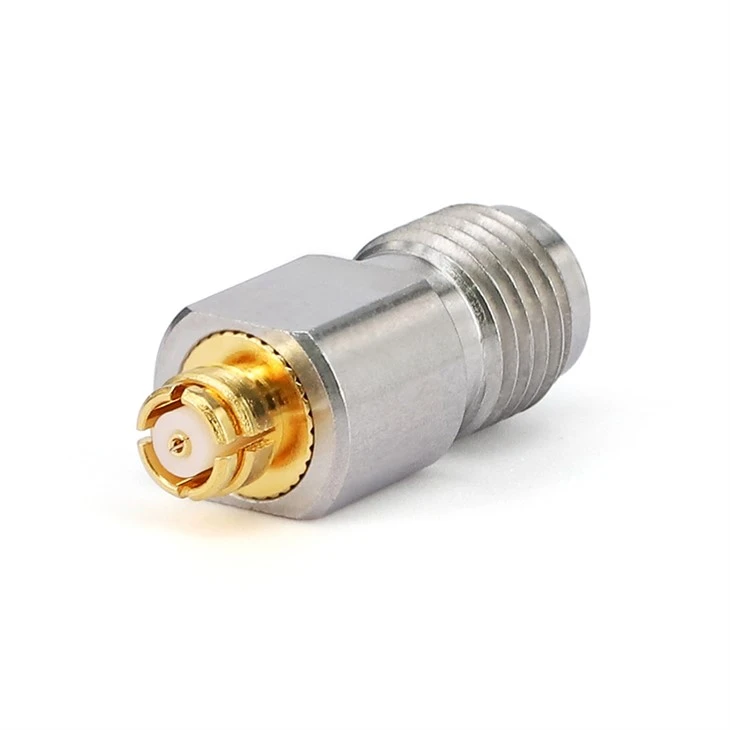

SMA to GPO (SMP) RF Adapter |
|||||
|
SKU |
Tpinġija |
Frekwenza |
VSWR |
Tip ta 'Deskrizzjoni |
|
|
Fr 1- SMA / gpo-jj |
|
|
DC -18 GHz |
1.20 |
SMA Male to GPO Male |
|
Fr 1- SMA / GPO-KK |
|
|
DC -18 GHz |
1.20 |
Mara SMA lil mara gpo |
|
Fr 1- SMA / GPO-JK |
|
|
DC -18 GHz |
1.20 |
SMA Male to gpo mara |
|
Fr 1- SMA / gpo-kj |
|
|
DC -18 GHz |
1.20 |
Mara SMA għal raġel gpo |
|
Adapter SMA għal SSMA RF |
|||||
|
SKU |
Tpinġija |
Frekwenza |
VSWR |
Tip ta 'Deskrizzjoni |
|
|
Fr 1- SMA / SSMA-JJ |
|
|
DC -27 GHz |
1.25 |
SMA Male to SSMA Male |
|
Fr 1- SMA / SSMA-KK |
|
|
DC -6 GHz |
1.25 |
Mara SMA lil mara SSMA |
|
Fr 1- SMA / SSMA-JK |
|
|
DC -18 GHz |
1.25 |
SMA Male to SSMA FEMOR |
|
Fr 1- SMA / SSMA-KJ |
|
|
DC -18 GHz |
1.25 |
Mara SMA għal SSMA Male |
|
SMA to SSMC RF Adapter |
|||||
|
SKU |
Tpinġija |
Frekwenza |
VSWR |
Tip ta 'Deskrizzjoni |
|
|
Fr 1- SMA / SSMC-JJ |
|
|
DC -6 GHz |
1.20 |
SMA Male to SSMC Male |
|
Fr 1- SMA / SSMC-KK |
|
|
DC -6 GHz |
1.20 |
Mara SMA għal mara SSMC |
|
Fr 1- SMA / SSMC-JK |
|
|
DC -6 GHz |
1.20 |
SMA Male to SSMC Female |
|
Fr 1- SMA / SSMC-KJ |
|
|
DC -6 GHz |
1.20 |
SMA Femminili għal SSMC Male |
|
Adapter SMA għal MCX RF |
|||||
|
SKU |
Tpinġija |
Frekwenza |
VSWR |
Tip ta 'Deskrizzjoni |
|
|
Fr 1- sma / mmcx-jj |
|
|
DC -6 GHz |
1.20 |
SMA Male to MMCX Male |
|
Fr 1- SMA / MMCX-KK |
|
|
DC -6 GHz |
1.20 |
SMA Female to mmcx femminili |
|
Fr 1- SMA / MMCX-JK |
|
|
DC -6 GHz |
1.20 |
SMA Male to mmcx mara |
|
Fr 1- SMA / mmcx-kj |
|
|
DC -6 GHz |
1.20 |
SMA Female to MMCX Male |
|
SMA to IPEX RF Adapter |
|||||
|
SKU |
Tpinġija |
Frekwenza |
VSWR |
Tip ta 'Deskrizzjoni |
|
|
Fr 1- sma / ipx 1- jj |
|
|
DC -6 GHz |
1.35 |

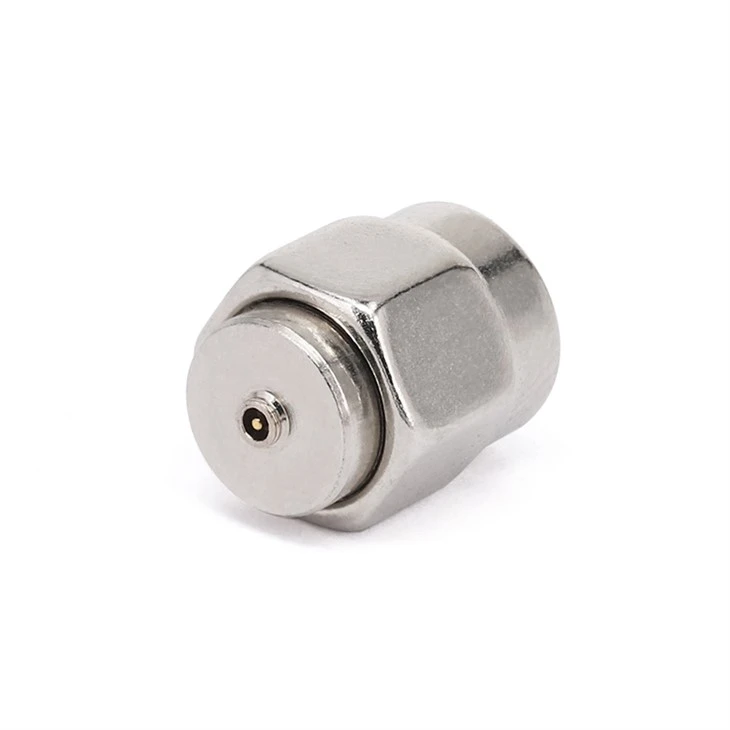

SMA Male to IPX1 Male |
|
Fr 1- sma / ipx 1- kks |
|
|
DC -6 GHz |
1.20 |
SMA Male to ipx1 mara |
|
Fr 1- sma / ipx 4- jj |
|
|
DC -6 GHz |
1.35 |

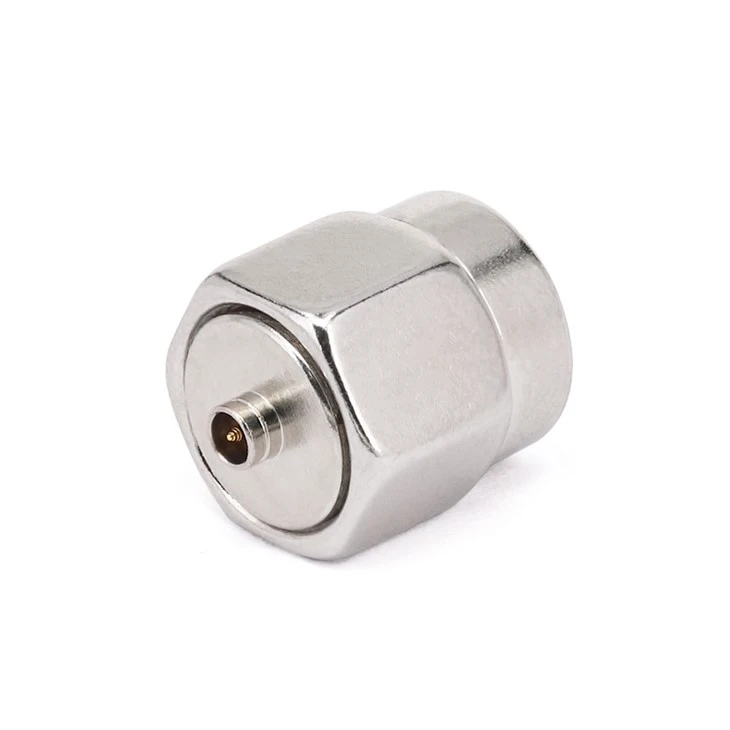

SMA Male to IPX4 Male |
